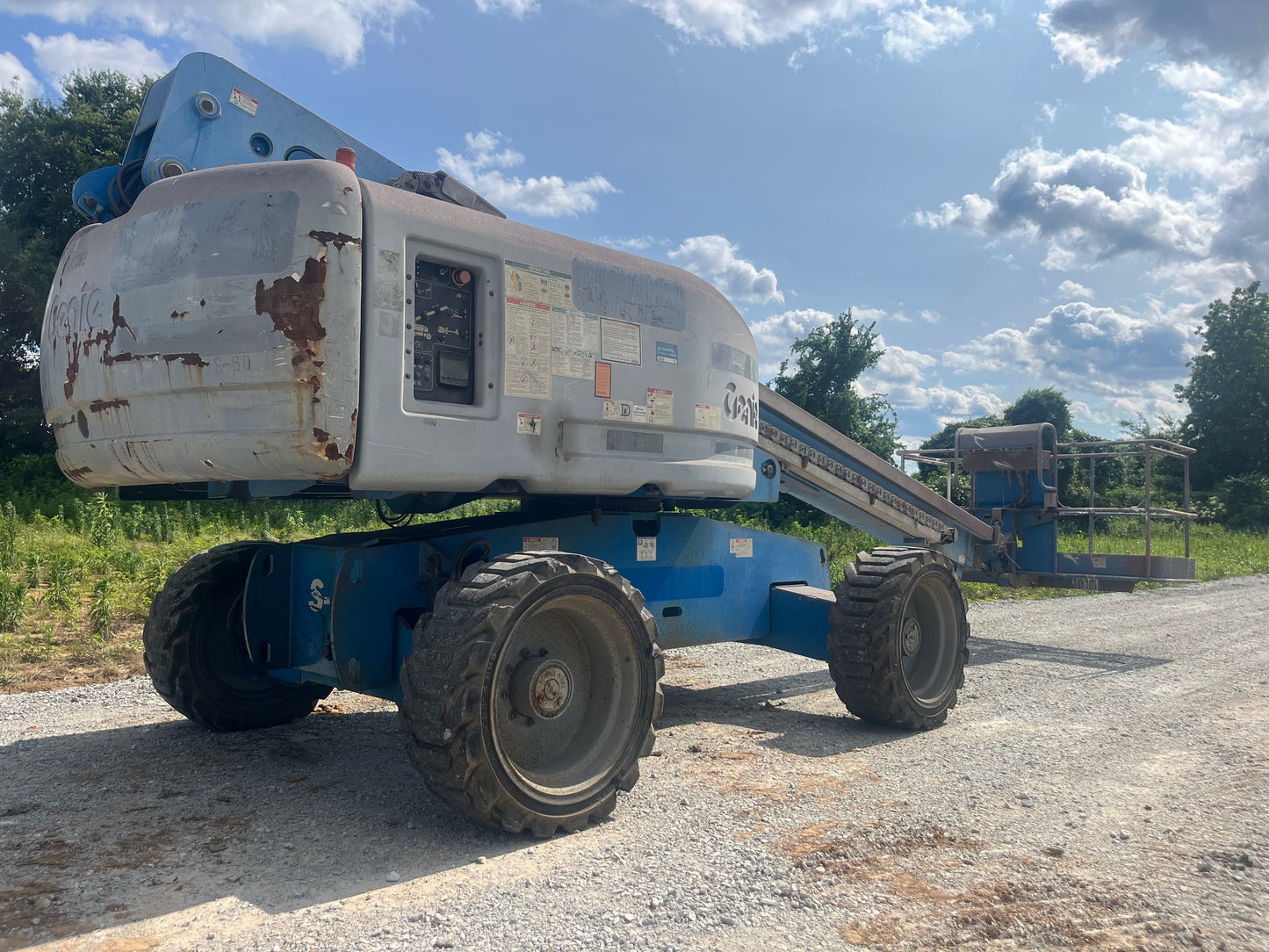

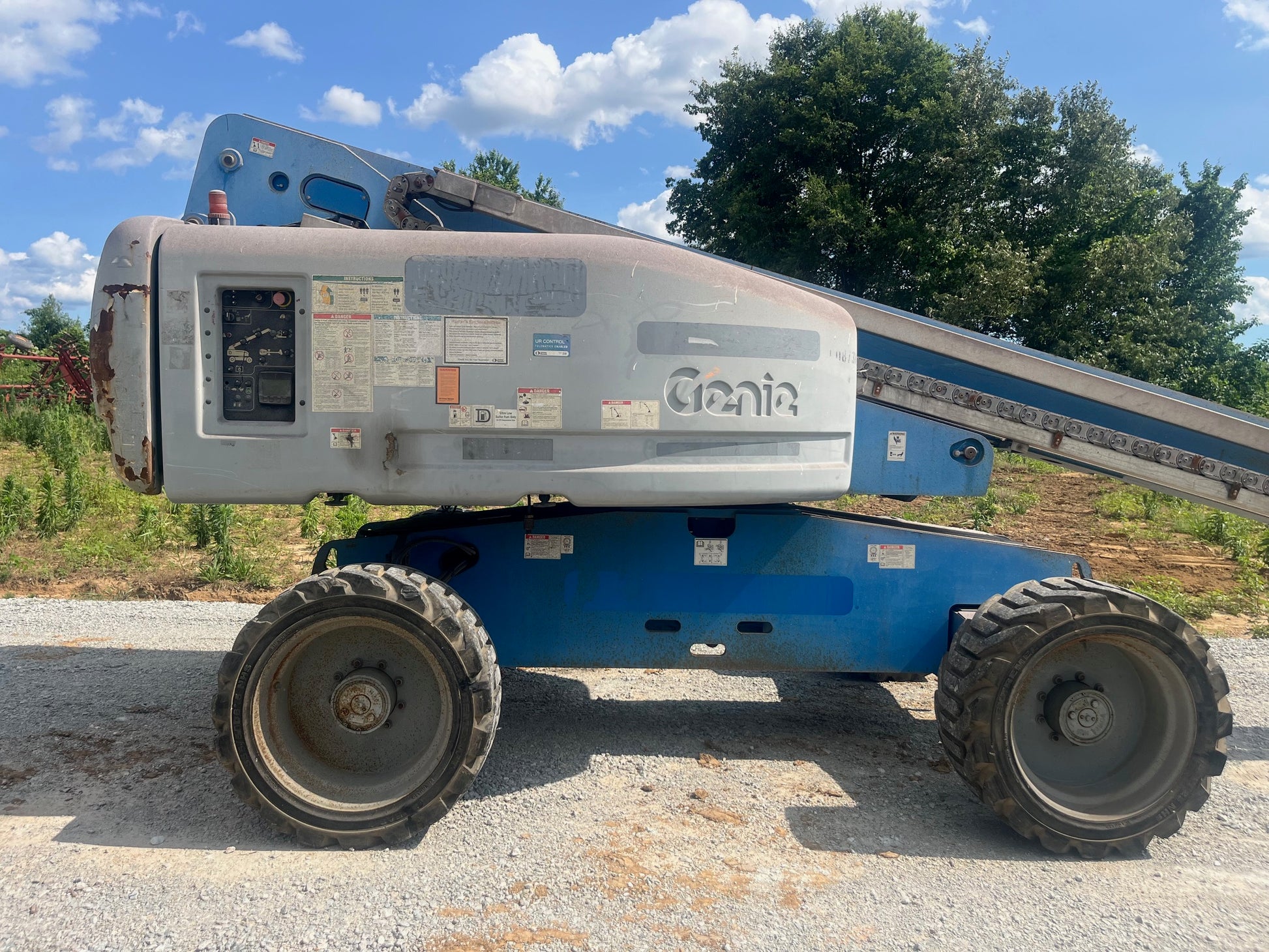

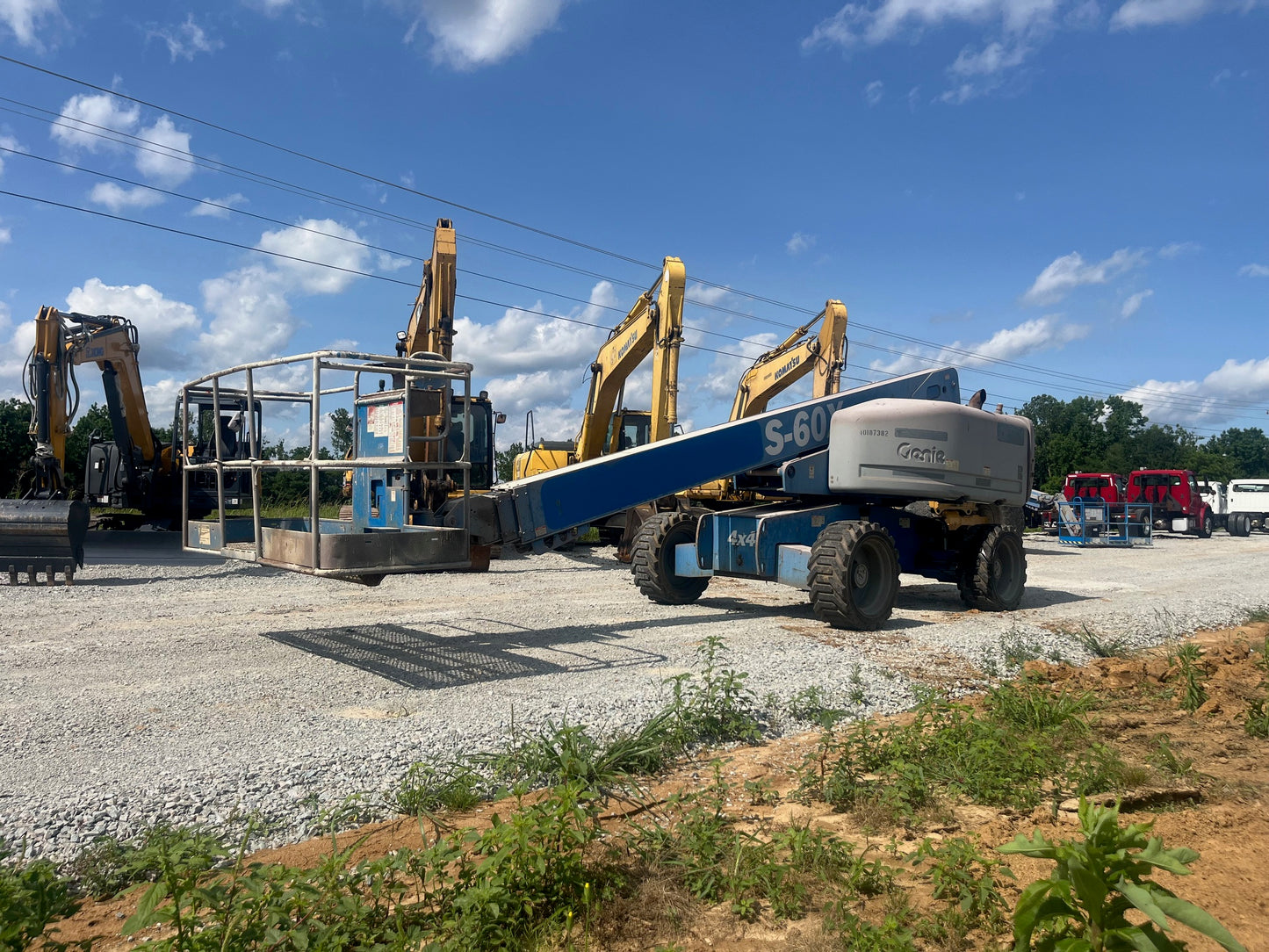

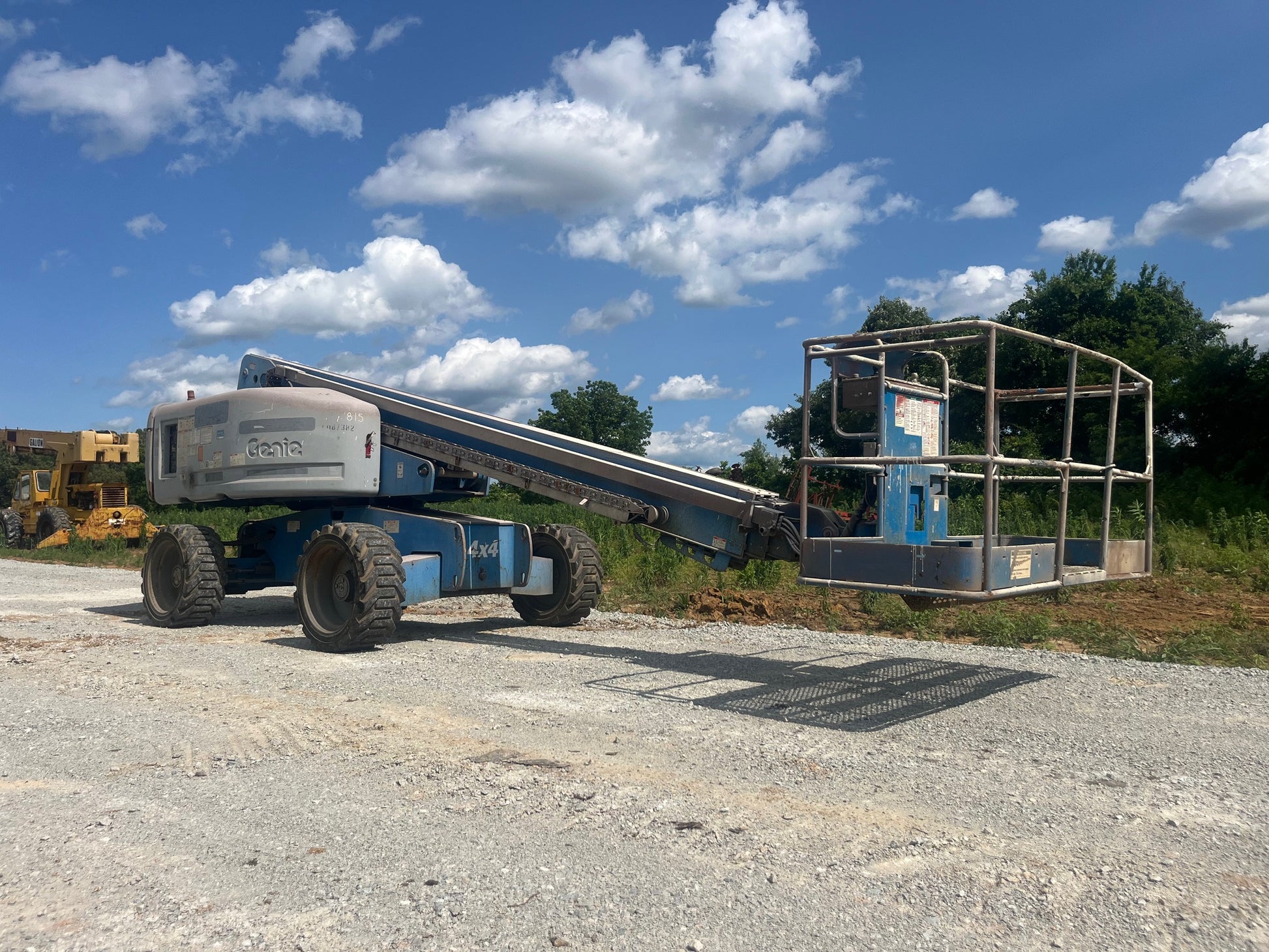

2013 Genie S-60X Telescopic Boom Lift
2013 Genie S-60X Telescopic Boom Lift
Couldn't load pickup availability
The 2013 Genie S-60X is a self-propelled telescopic boom lift, purpose-built for construction, maintenance, and industrial applications that require high reach and significant platform capacity. Its robust design, dual capacity ratings, and reliable diesel powertrain make it a popular choice for demanding aerial work.
Key Performance Specs
| Specification | Value |
|---|---|
| Max Working Height | 66 ft (20.12 m) |
| Platform Height | 60 ft (18.30 m) |
| Max Horizontal Reach | 50 ft 10 in (15.48 m) |
| Lift Capacity | 1,000 lbs (454 kg) restricted zone |
| 500 lbs (227 kg) unrestricted zone | |
| Below Ground Reach | 5 ft 6 in (1.70 m) |
| Platform Rotation | 160° |
| Turntable Rotation | 360° continuous |
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) |
| Drive Speed (Raised) | 1 ft/sec (0.3 m/sec) |
| Gradeability | 45% |
| Turning Radius | Inside: 7 ft 9 in (2.40 m); Outside: 18 ft 2 in (5.50 m) |
| Engine | Deutz diesel engine (49 hp typical) |

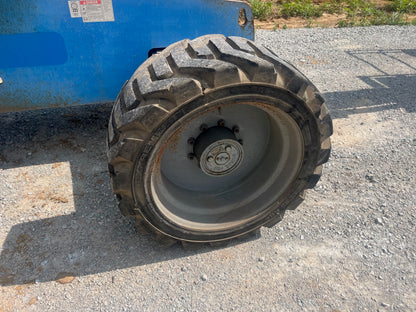

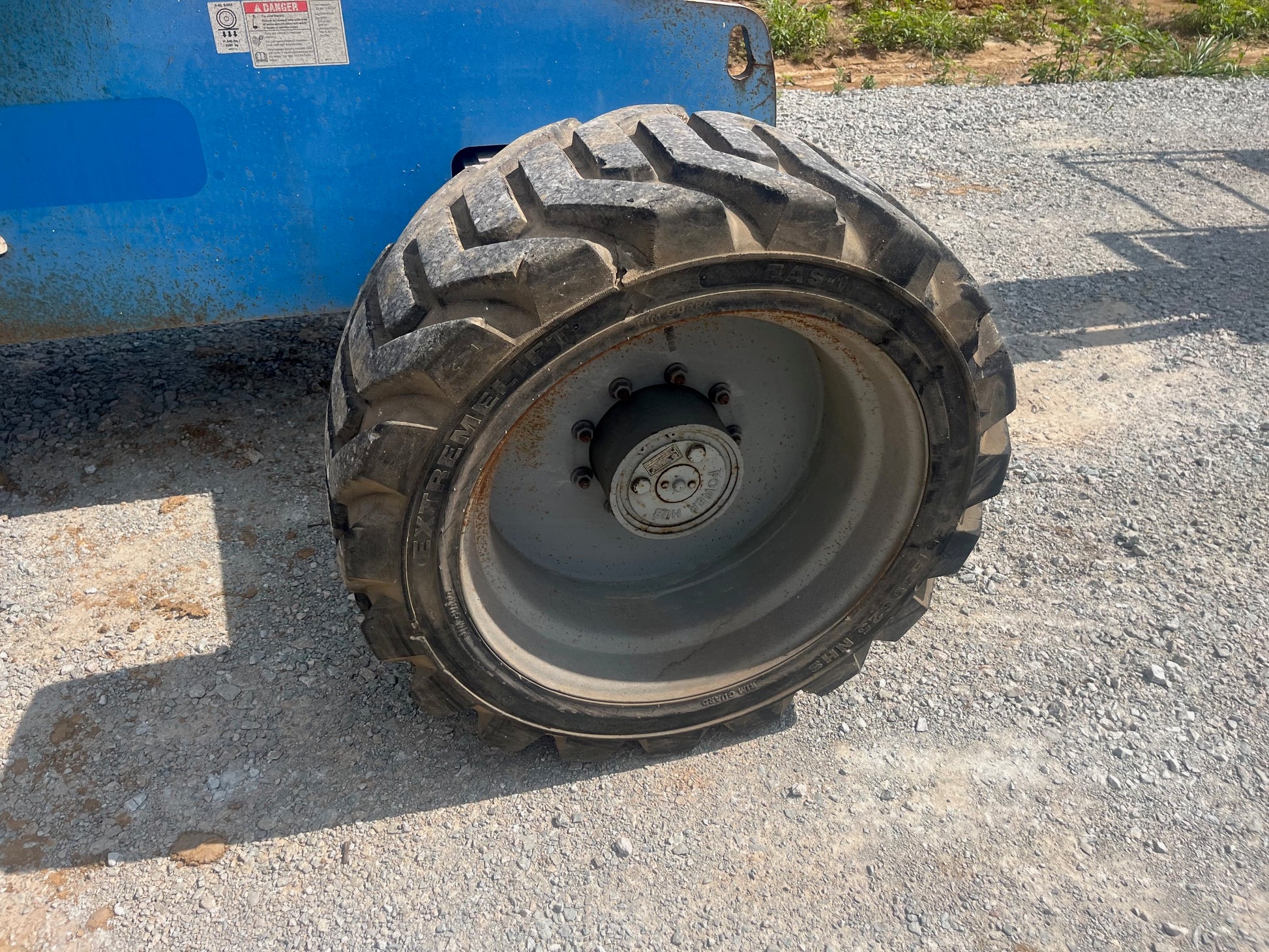

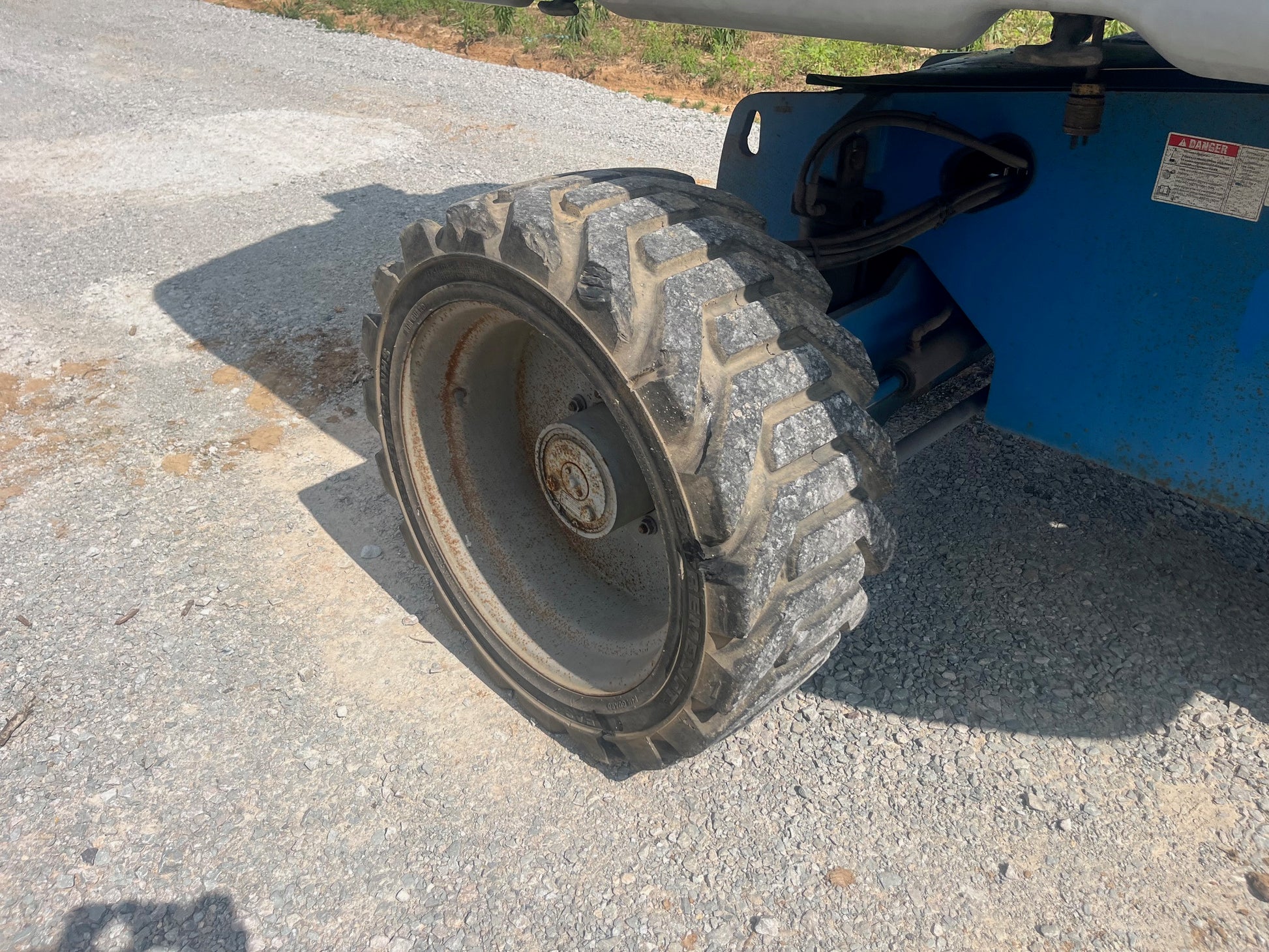

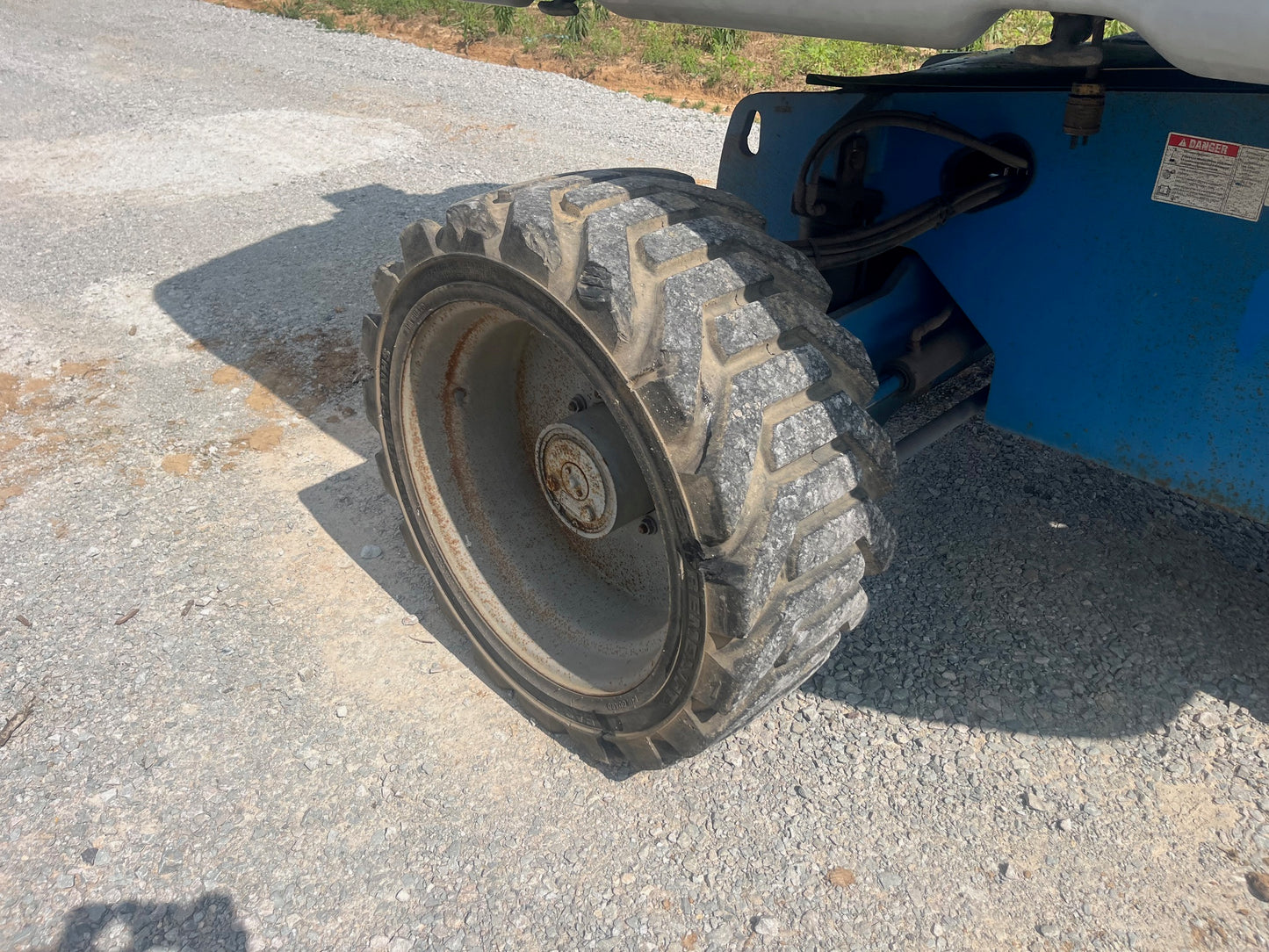

| Tires | 355/55D625 foam-filled or OTR |
| Operating Weight | Approx. 20,570 lbs (9,330 kg) |
| Ground Clearance | 16.9 in (0.43 m) |
| Width | 8 ft 2 in (2.49 m) |
| Length | 28 ft 7 in (8.71 m) |
| Wheelbase | 8 ft 3 in (2.51 m) |
| Fuel Tank | 30 gal (114 L) |
Notable Features
-
Dual Capacity: Supports heavy loads—up to 1,000 lbs—in a restricted operating envelope, and 500 lbs across its full range of motion.
-
Continuous Rotation: 360° turntable rotation for fast, precise positioning.
-
Jib Option: Most S-60X units do not include a jib (check for jib on individual machines).
-

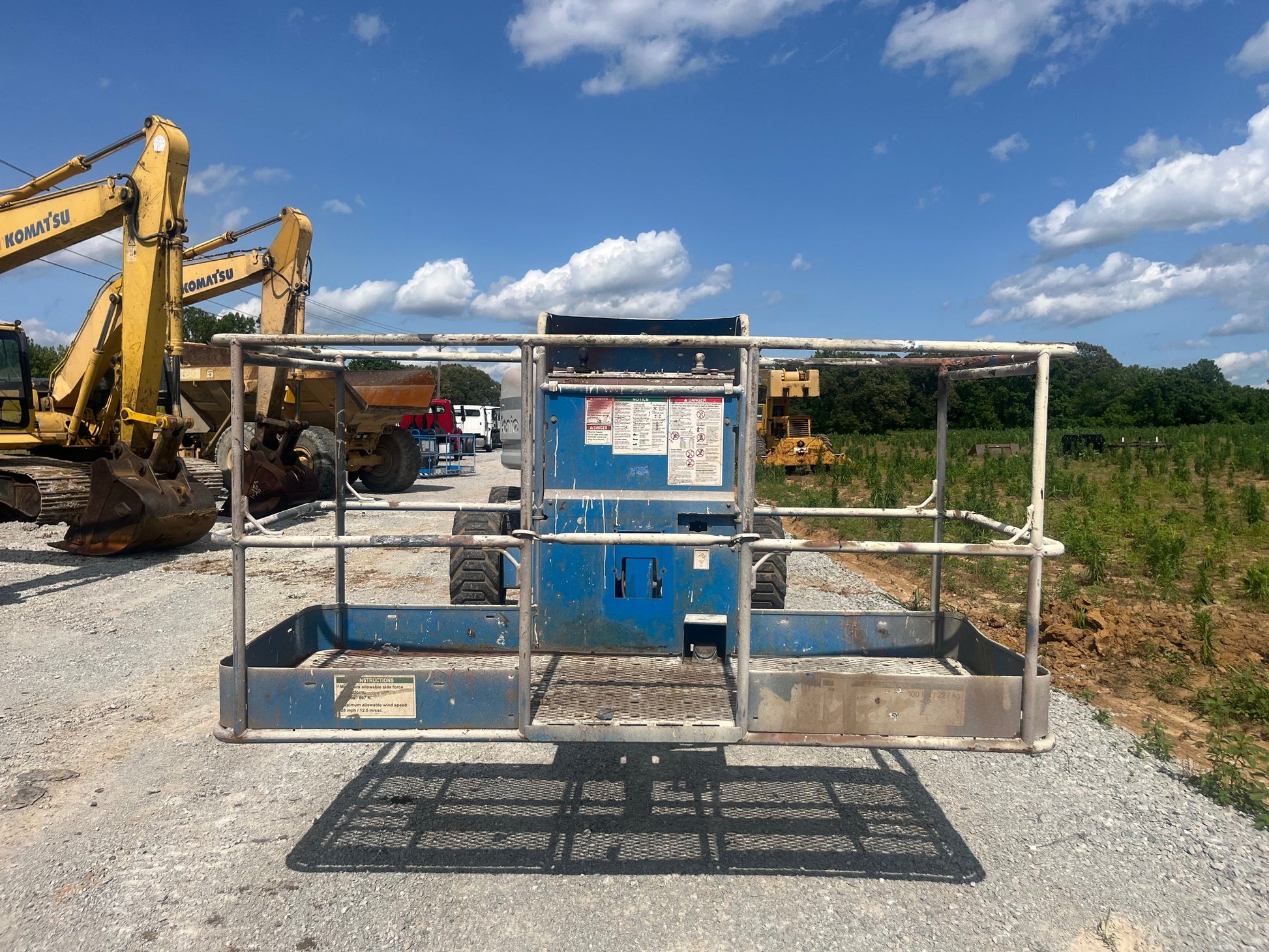

Self-Leveling Platform for ease of use and productivity.
-

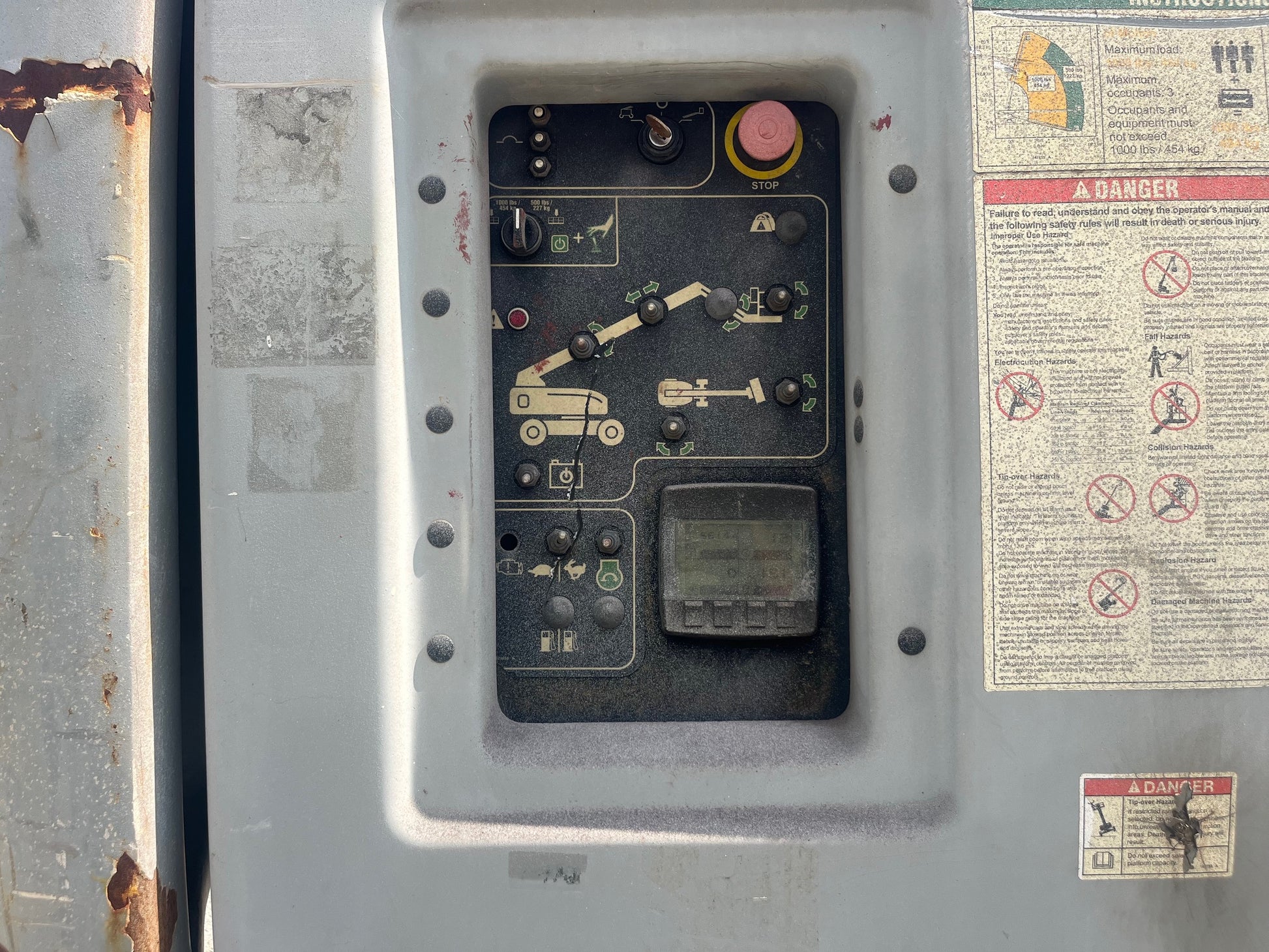

Platform Power and Controls: AC power to platform, proportional joystick control, operator horn, and audible alarms.
-
2WD or 4WD Configurations: 2013 models commonly feature either selectable option.
-
Hydraulic Leveling: Maintains stability and safety on rough terrain.
Common Applications
-
Building construction and exterior finish work
-
Equipment installation and plant maintenance
-
Utility and lighting repair
-
Steel erection, signage, and painting
Summary
The Genie S-60X stands out for its combination of working height, horizontal reach, and dual platform capacity, making it suitable for both heavy material handling and expansive overhead tasks. Its strong Deutz diesel engine, robust off-road tires, and easy-to-use controls ensure reliability and efficiency on job sites with varied challenges.
If you’re evaluating a used 2013 Genie S-60X, confirm specific features (jib, tire type, 2WD/4WD) and machine condition as listed. This lift delivers the reach and capacity required for modern high-access construction and facility work.
