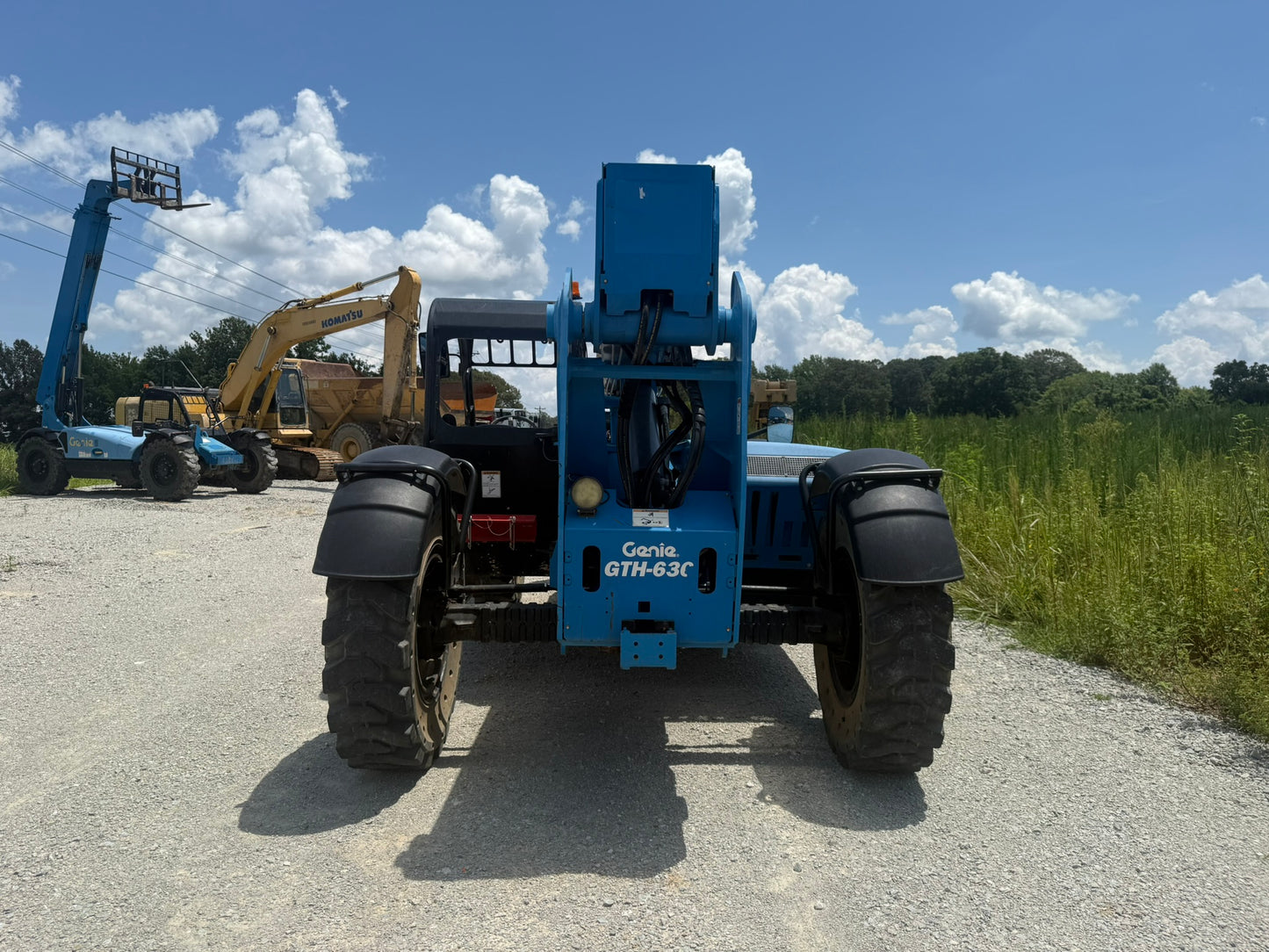

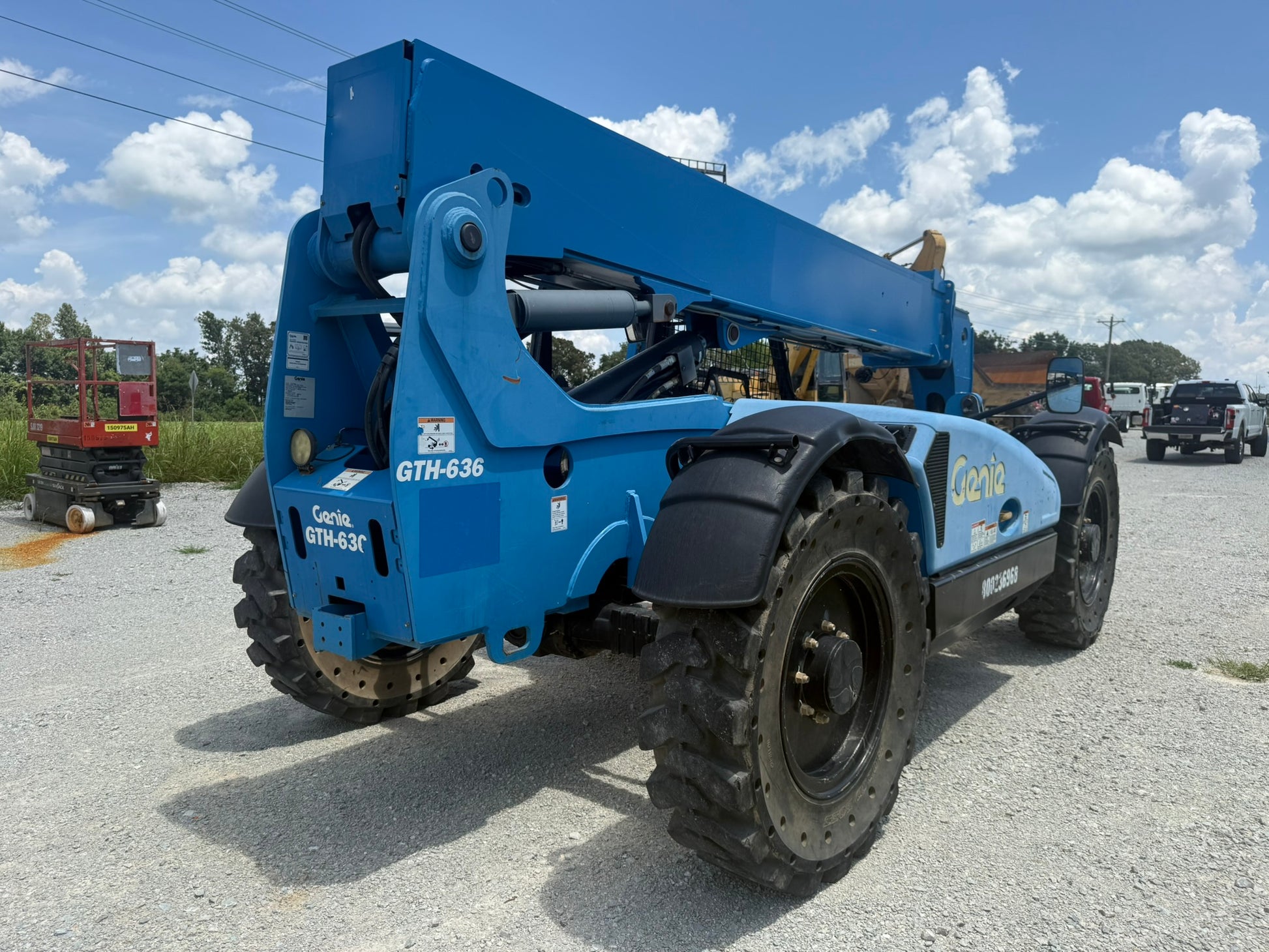

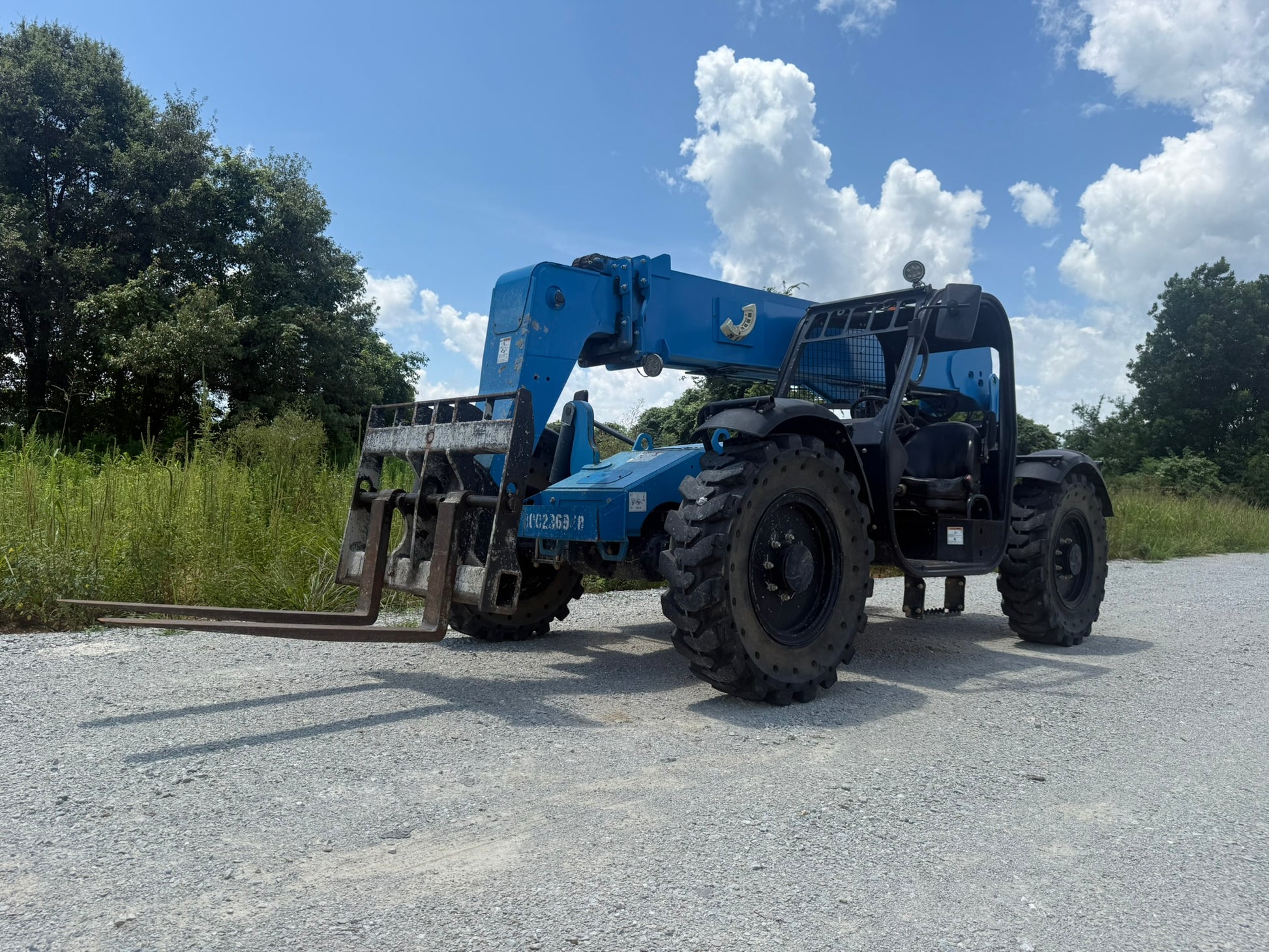

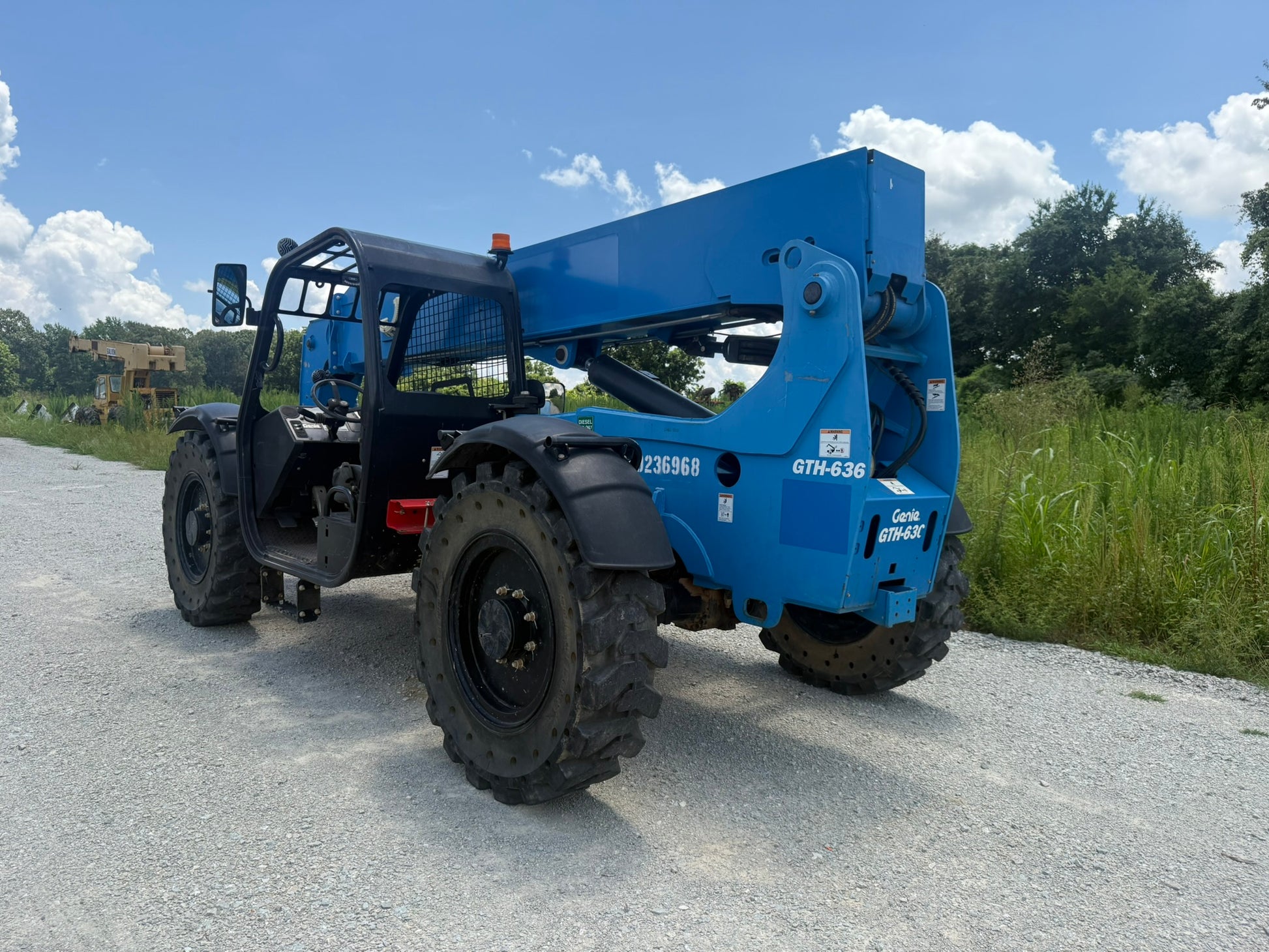

The2018 Genie GTH-636is a mid-sized, high-performance telehandler widely used in construction, agriculture, and industrial settings. It combines compact maneuverability with impressive lifting capacity and extended boom reach, making it a popular choice for demanding material handling applications.
Feature
Specification
6,000 lbs (2,722 kg)
36 ft (10.97 m)
21 ft 11 in (6.68 m)
5,000 lbs (2,268 kg)
1,500 lbs (680 kg)
~18,600 lbs (8,437 kg)

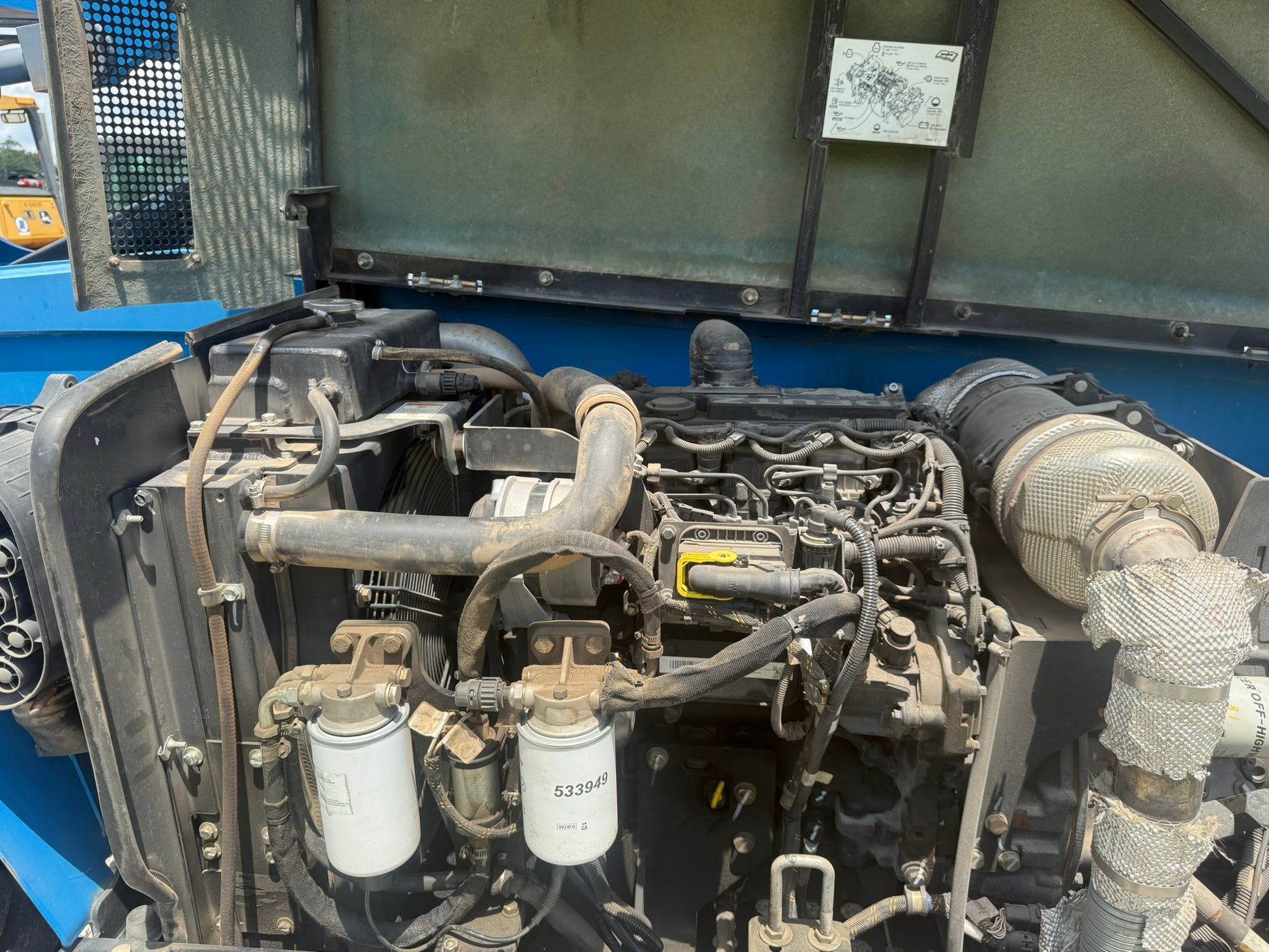

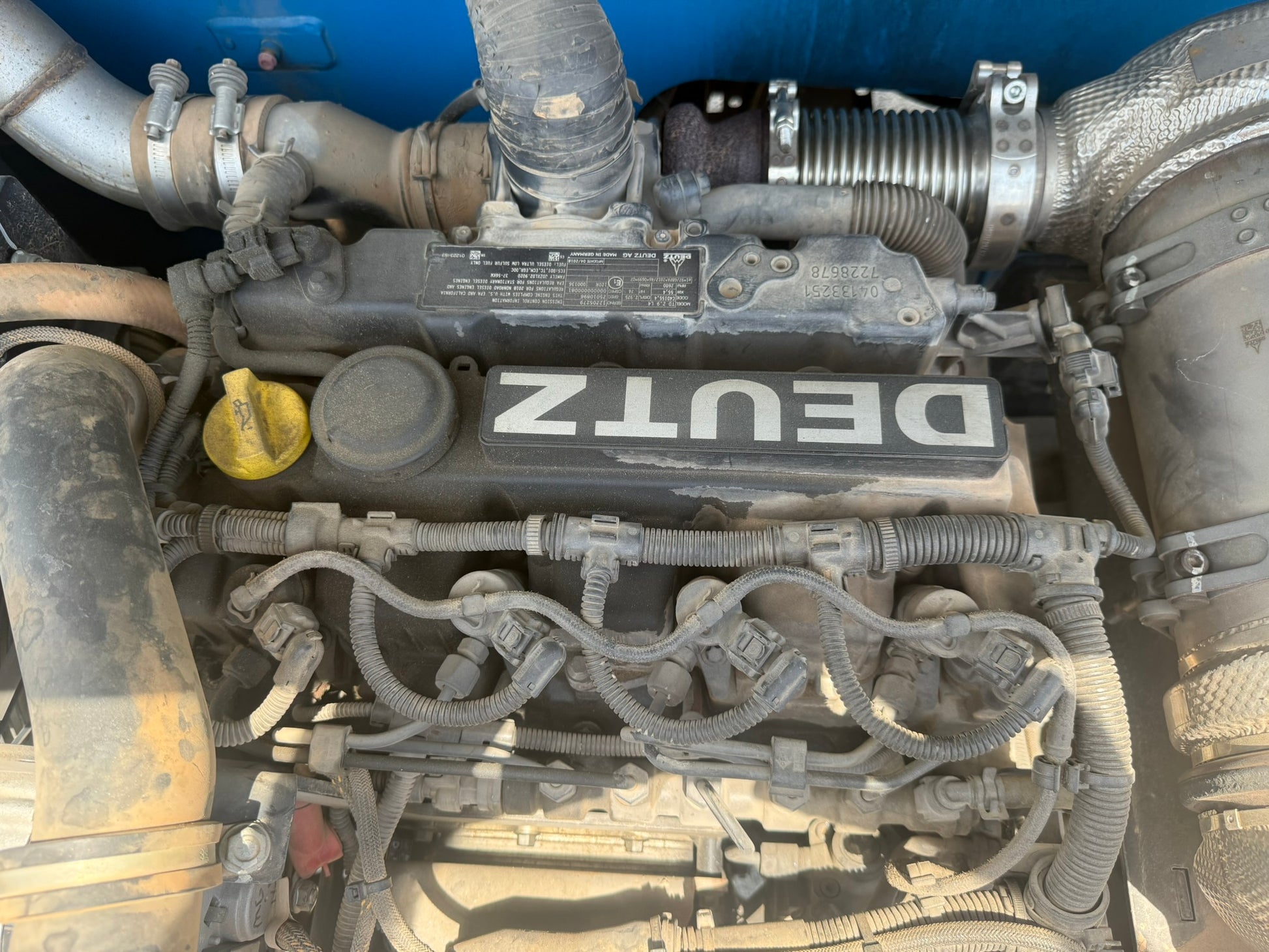

Deutz 2.9L, 74 hp, Tier 4 Final
4WD, 3 steering modes (front/4WS/crab)
Powershift, 3 forward/3 reverse gears
19 mph (30.6 km/h)
45%
13 ft 4 in (4.06 m)
17 ft 5 in (5.31 m)
7 ft 11 in (2.41 m)
7 ft 10 in (2.39 m)
1 ft 6 in (0.46 m)

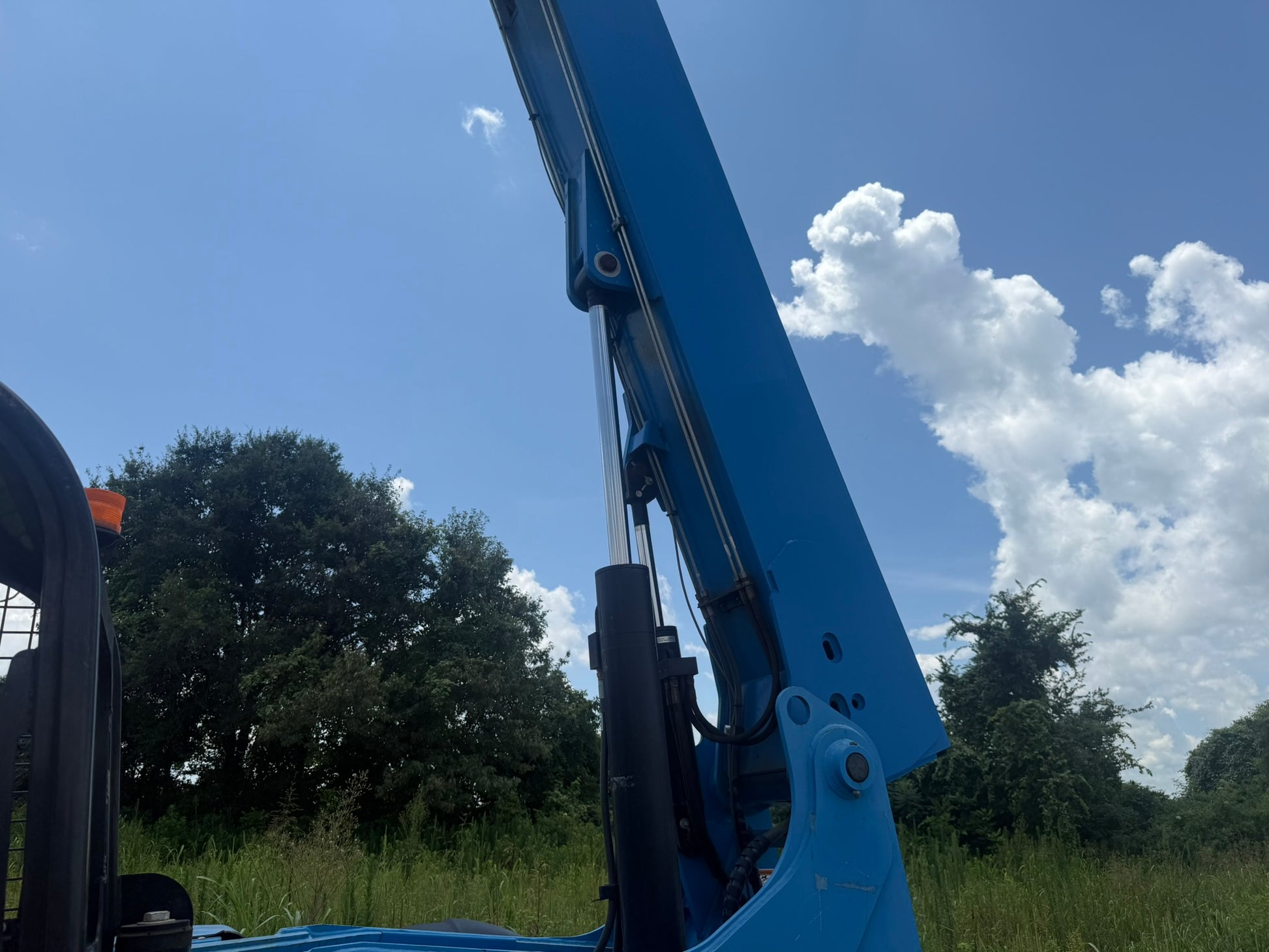

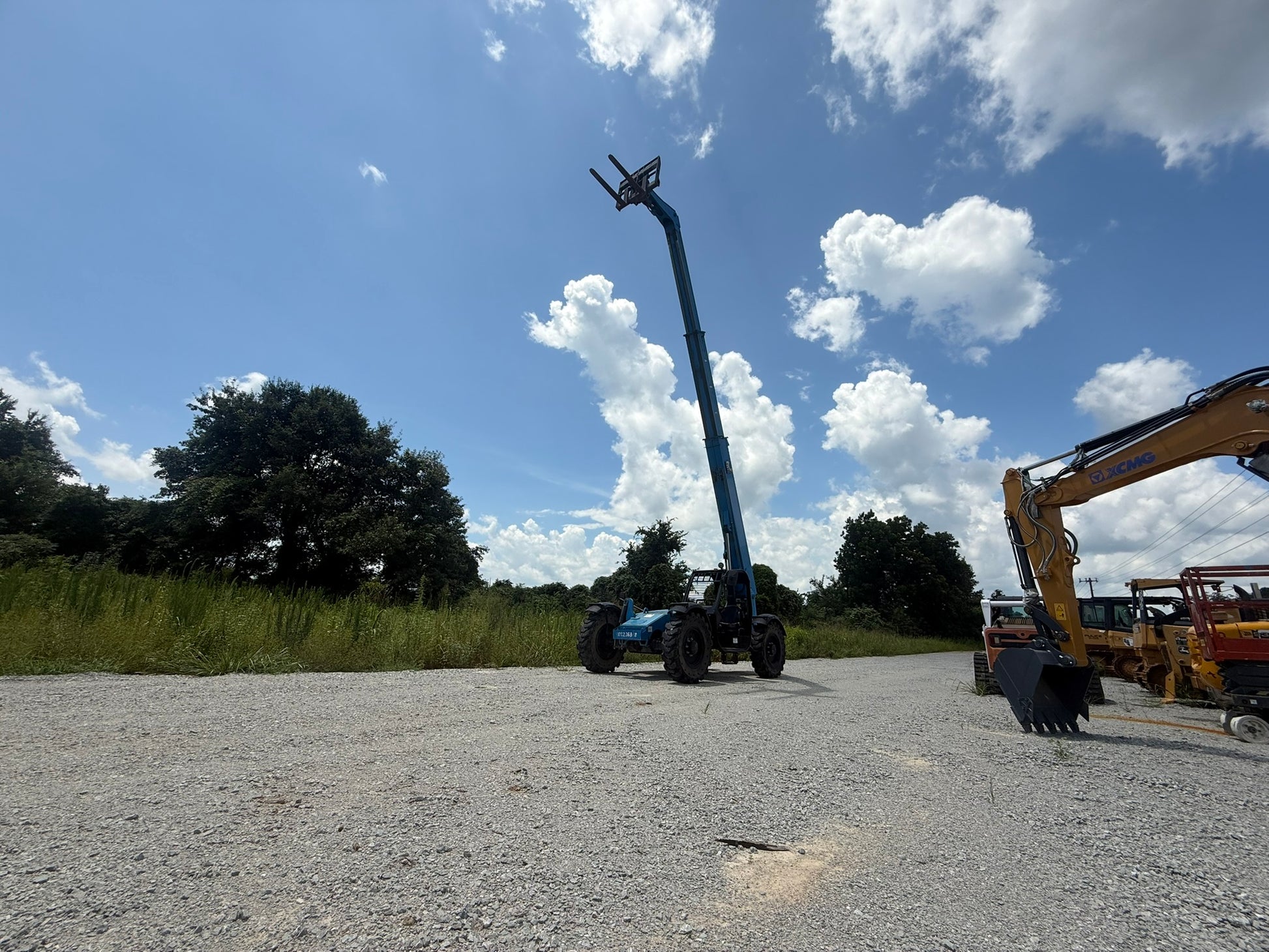

:Single three-section telescopic boom, with proportional controls for smooth, precise lifting.
:Automated selection of 2-wheel, 4-wheel coordinated, and crab steering for tight-site maneuvering.
:Full-time four-wheel drive, inboard wet disc brakes, and frame leveling ±10° each side for safe operation on uneven terrain.

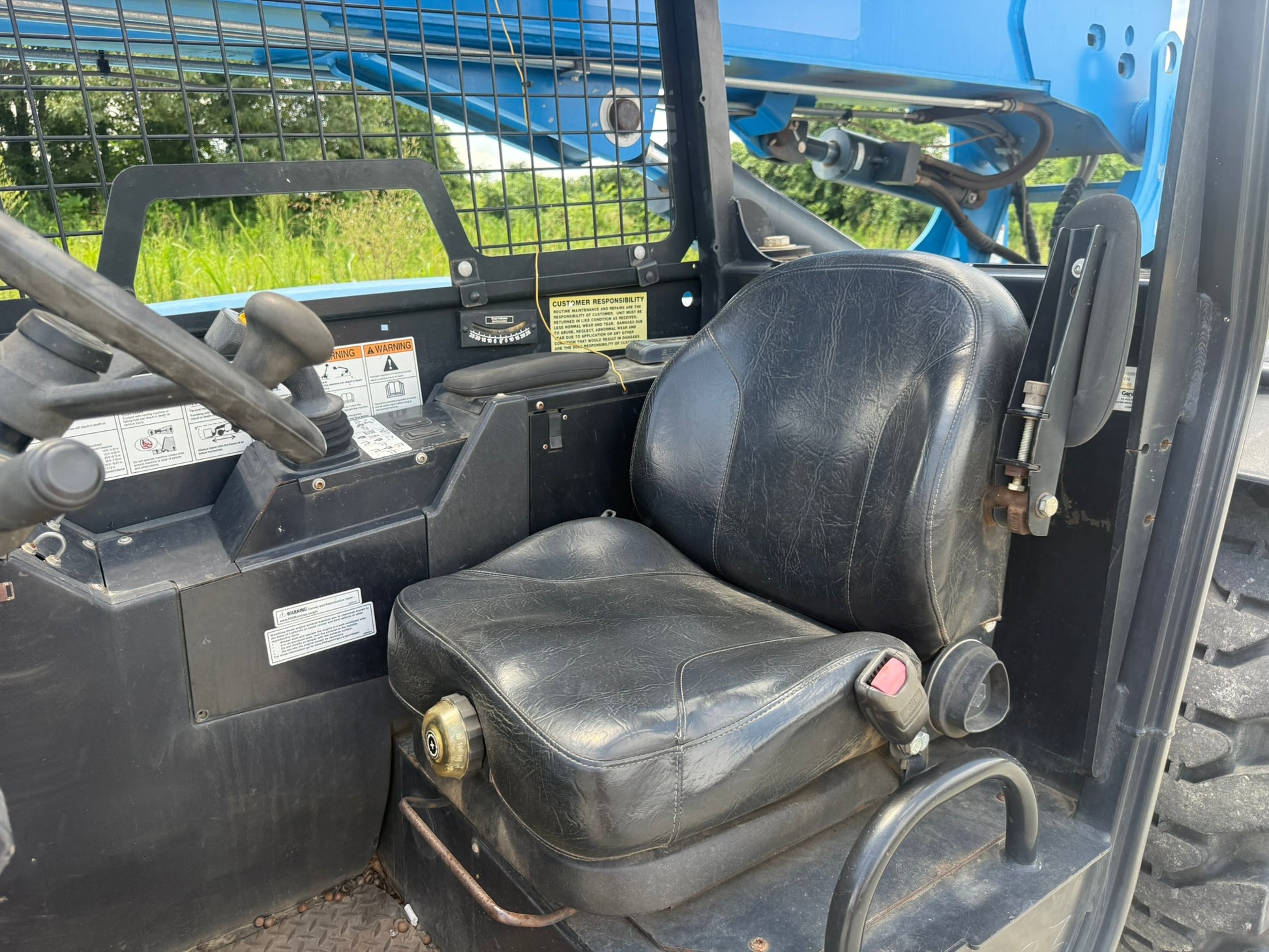

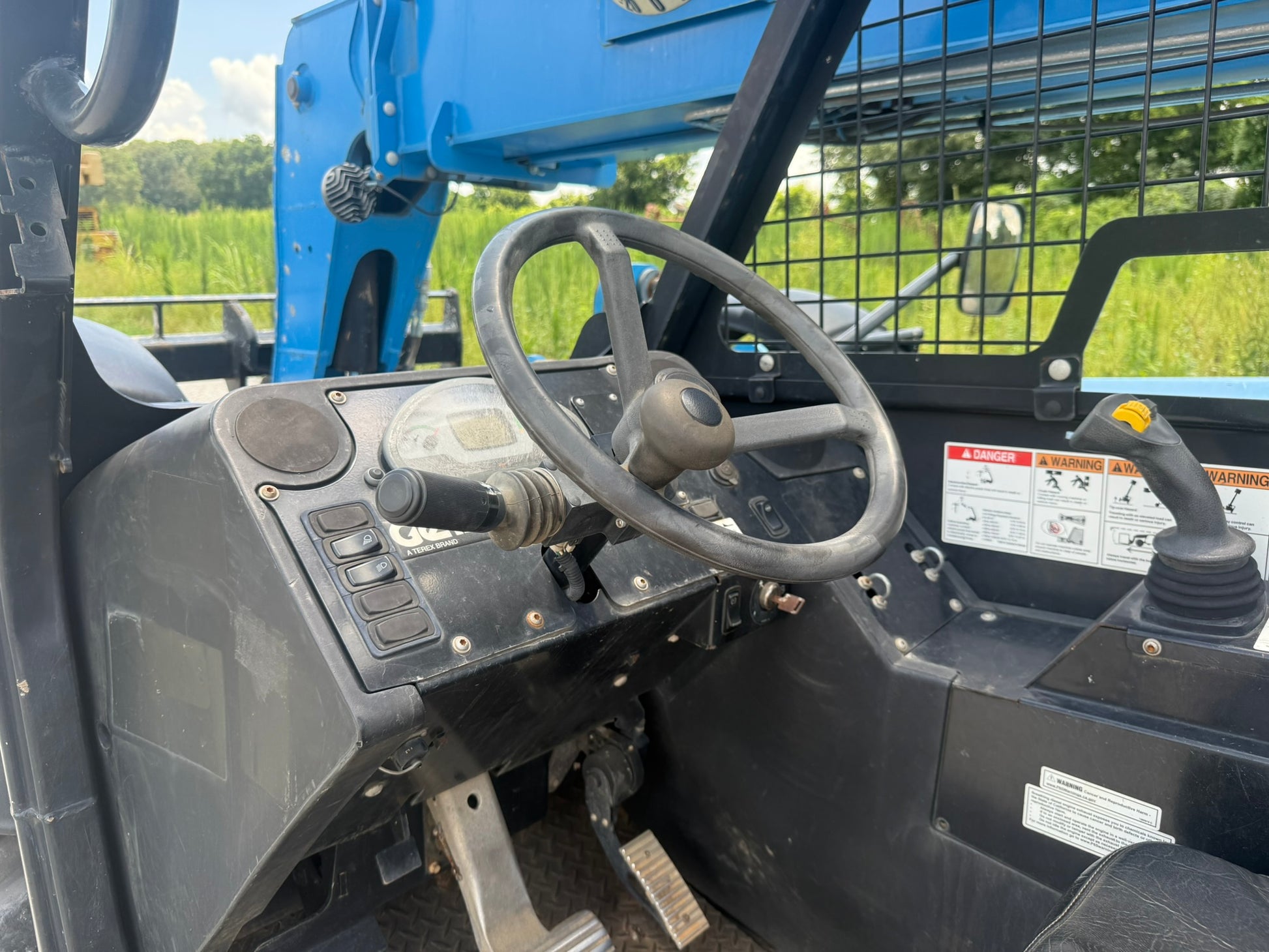

:ROPS/FOPS open canopy or optional enclosed cab, multi-function joystick, full gauge cluster with diagnostics, and clear operator visibility.

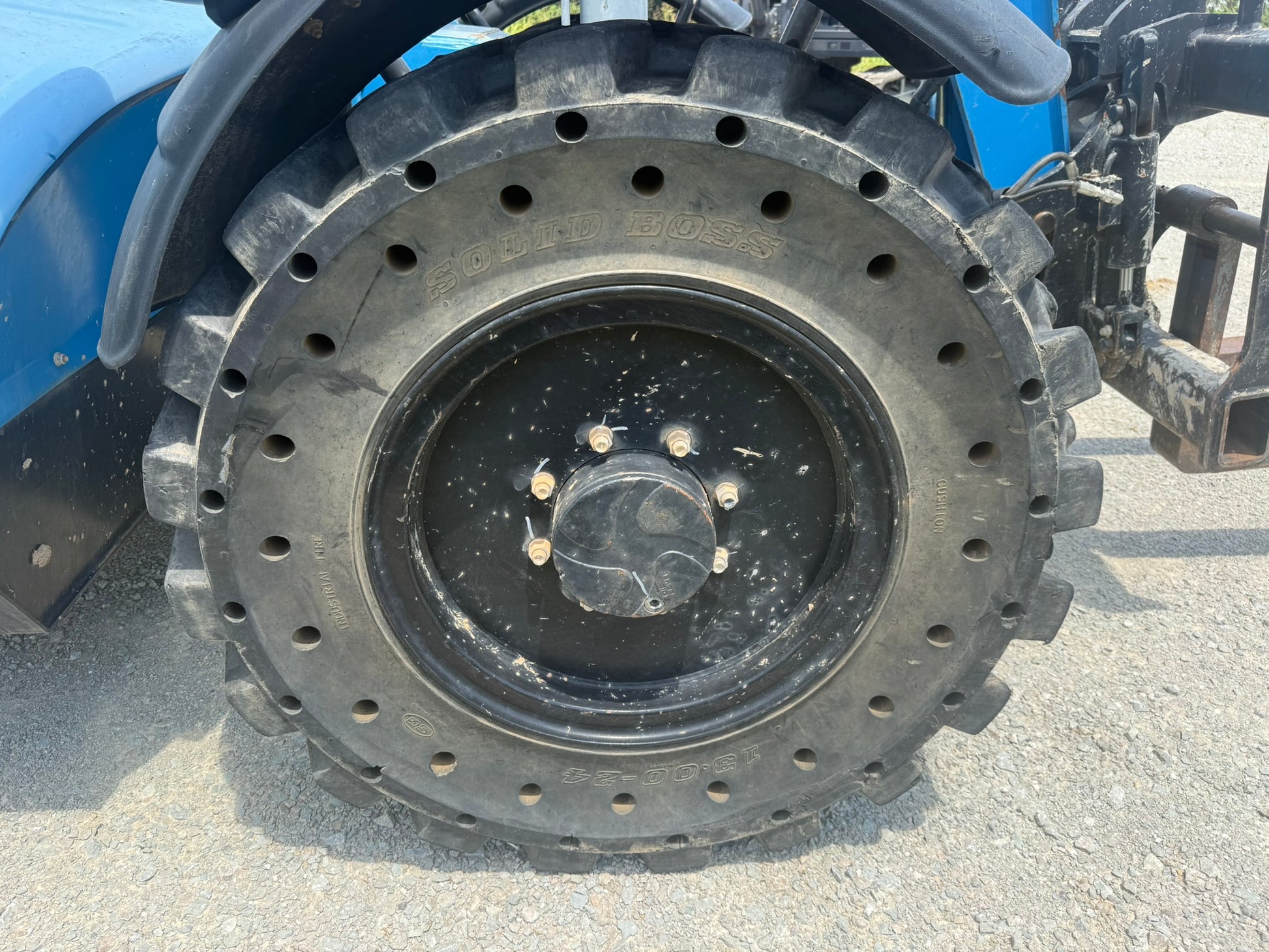

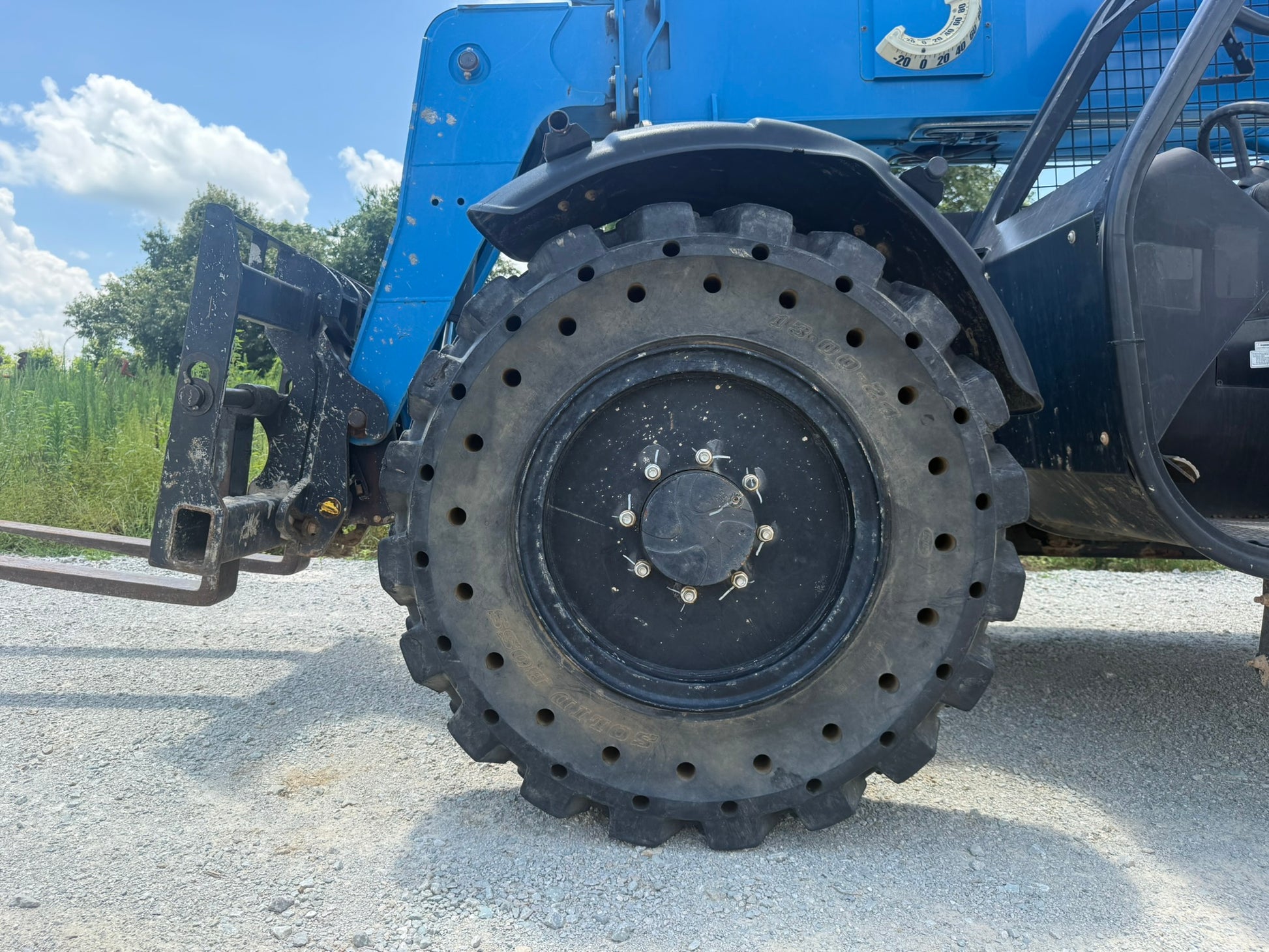

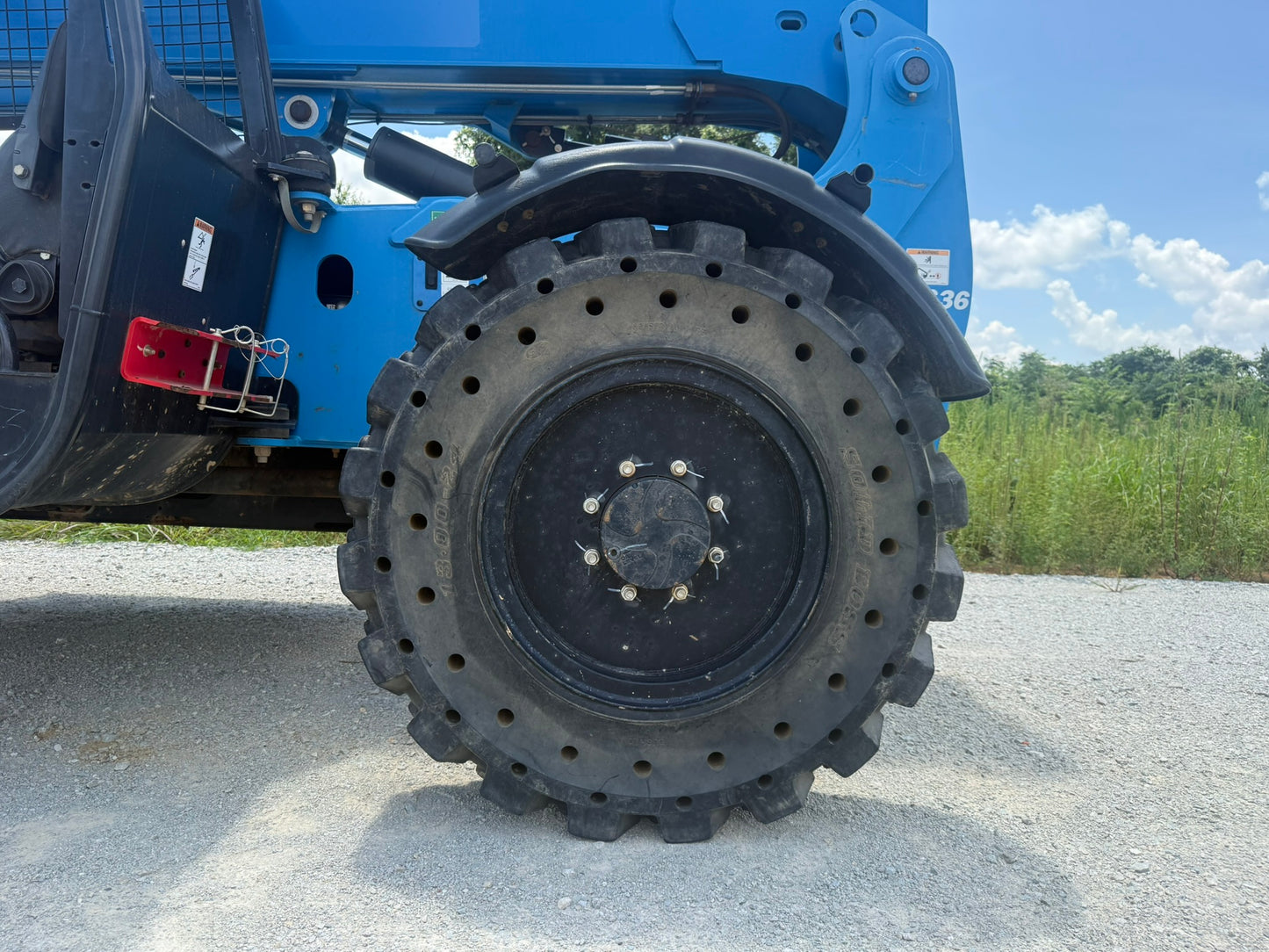

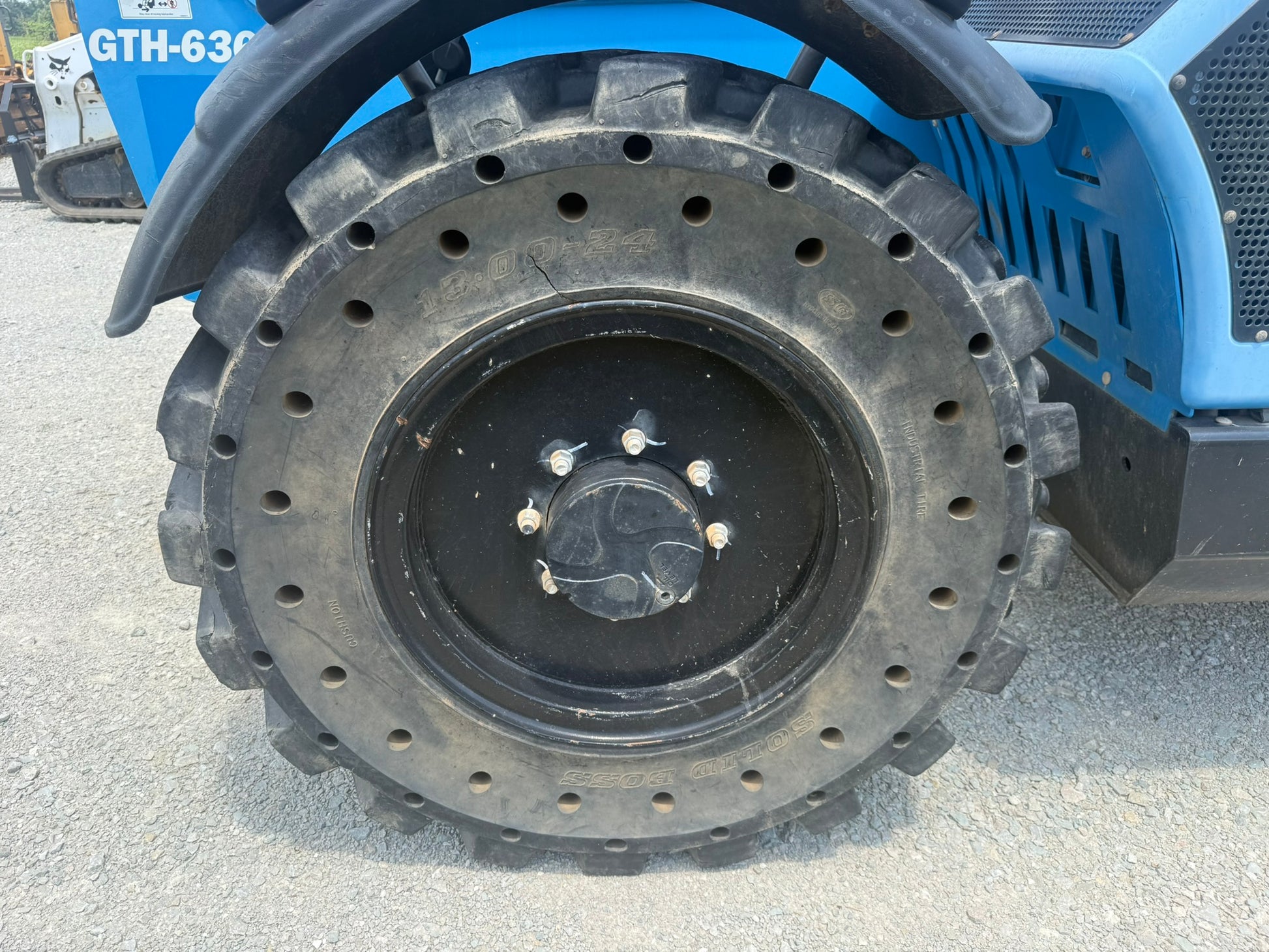

:Options include foam-filled or rough-terrain pneumatic tires for all-surface performance.

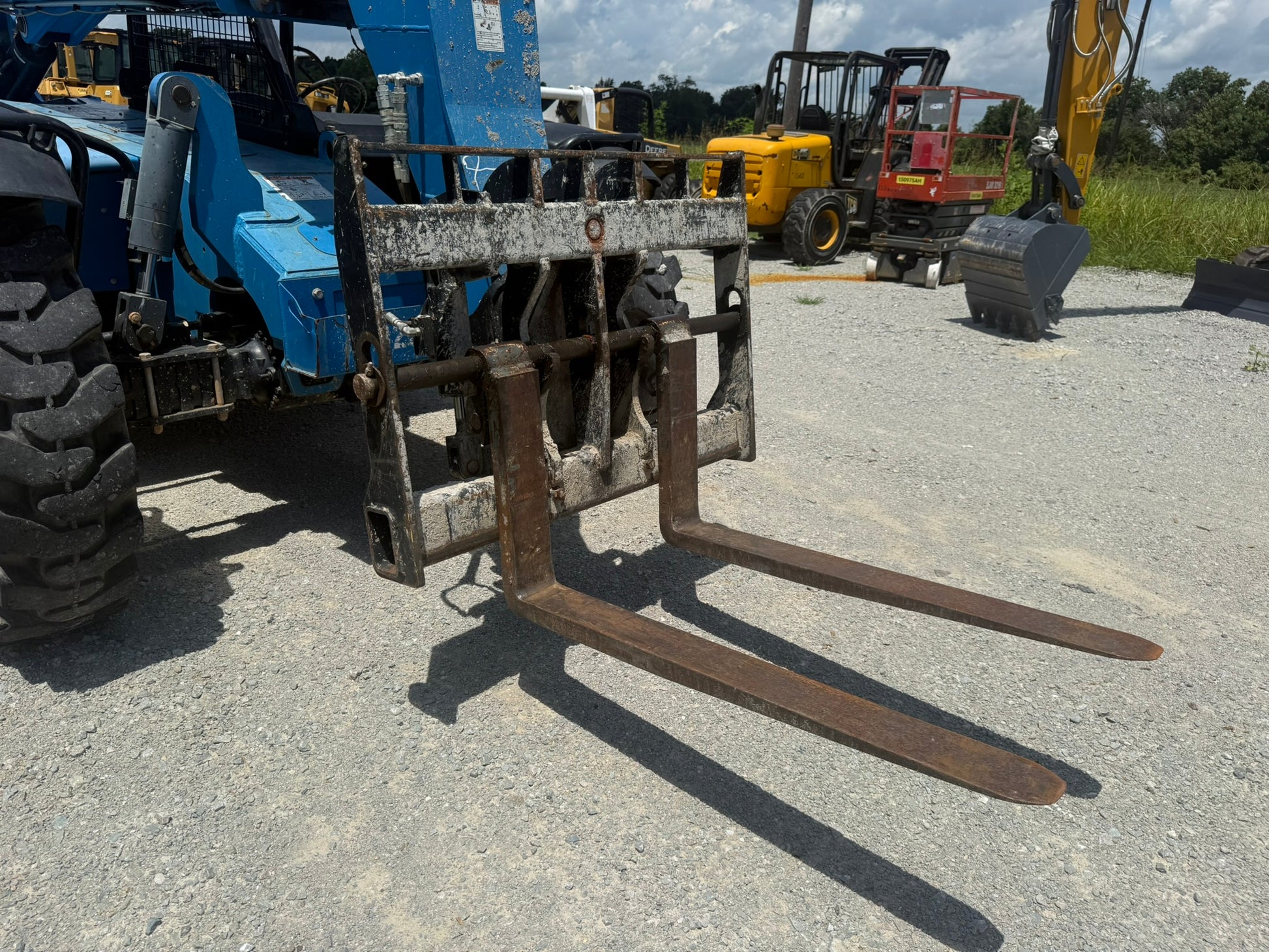

:Quick-Attach™ system for fast attachment swaps (forks, buckets, work platforms).
:Baling, feed handling, barn cleanout, stacking supplies.
:Yard management, containers, equipment placement in tight spaces.
High lift capacity without exceeding 20,000 lbs in operating weight.
Engine does not require DPF or regeneration system, reducing downtime and maintenance.
Designed for lower cost of ownership by maximizing structural reliability and minimizing emissions complications.
Attribute
Value
Max Lift/Height
6,000 lbs / 36 ft
Max Forward Reach
21 ft 11 in
Rated Power
74 hp (Deutz diesel)
Operating Weight
~18,600 lbs
Transmission
3F/3R Powershift
Top Speed
19 mph
Frame Leveling
±10º
Tire Options
Pneumatic or foam-filled
Steering Modes
2WS, 4WS, crab
The2018 Genie GTH-636telehandler stands out for its balanced mix of lifting power, reach, compact size, and advanced productivity features. It is well-suited to varied heavy-lifting and material-placement challenges on demanding worksites.
